Get the job done with the right equipment
Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.
Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.
The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.
To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.
LOW PRESSURE HOSE
PUSH-LOCK FIBRE BRAID HOSE
LOW PRESSURE HOSE
PUSH-LOCK FIBRE BRAID HOSE
LOC

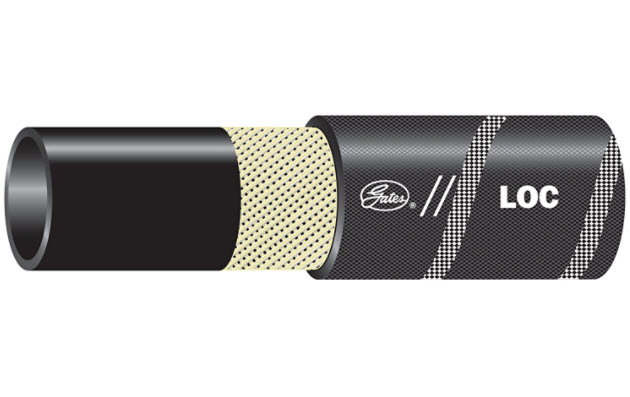

PUSH-LOCK FIBRE BRAID HOSE
- Due to manufacturing tolerances, the external dimension is an average.
- Recommended for: Petroleum based hydraulic oils, glycol anti-freeze compounds, water, engine lubricating oils and air.
- Standards: Meets SAE R2, SAE30 R6, SAE 30R7 performance requirements for fuel and B20 biodiesel fuel transfer applications.
- Internal tube: Black oil resistant synthetic nitrile.
- Reinforcement: Single fibre braid.
- External cover: Oil and mildew resistant, textile braid, impregnated with synthetic rubber.
- Temperature range: -40°C to +121°C. For air,-40°C to 71°C.
BRAIDED FIBRE REINFORCED HOSE
Product Data
4LOC
Internal Size
04
Colour
Black
Internal Diameter (in)
1/4
External Diameter (mm)
13.2
Working Pressure (psi)
300
Working pressure (bar)
21
Min burst pressure (psi)
1200
Min burst pressure (bar)
84
Min bend radius (mm)
75
6LOC
Internal Size
06
Colour
Black
Internal Diameter (in)
3/8
External Diameter (mm)
16.3
Working Pressure (psi)
300
Working pressure (bar)
21
Min burst pressure (psi)
1200
Min burst pressure (bar)
84
Min bend radius (mm)
75
8LOC
Internal Size
08
Colour
Black
Internal Diameter (in)
1/2
External Diameter (mm)
20.3
Working Pressure (psi)
300
Working pressure (bar)
21
Min burst pressure (psi)
1200
Min burst pressure (bar)
84
Min bend radius (mm)
130
10LOC
Internal Size
10
Colour
Black
Internal Diameter (in)
5/8
External Diameter (mm)
22.9
Working Pressure (psi)
300
Working pressure (bar)
21
Min burst pressure (psi)
1200
Min burst pressure (bar)
84
Min bend radius (mm)
150
12LOC
Internal Size
12
Colour
Black
Internal Diameter (in)
3/4
External Diameter (mm)
25.4
Working Pressure (psi)
300
Working pressure (bar)
21
Min burst pressure (psi)
1200
Min burst pressure (bar)
84
Min bend radius (mm)
180
INTRODUCING NEW ENDURO SPIRAL HOSE
ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.
