INVERTED SAE

SAE MALE SWIVEL SWEPT 90°

INVERTED SAE

SAE MALE SWIVEL SWEPT 90°

INVERTED SAE

SAE MALE SWIVEL SWEPT 90°

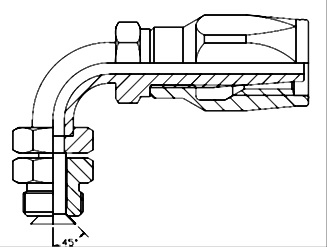

SAE MALE 45° INVERTED FLARE SWIVEL SWEPT 90°

PartNumber
SAE Male Thread (T)
Nominal Hose I.D - inches
Nominal Hose I.D - mm
True Hose I.D - inches
True Hose I.D - mm
Dash size
Hex A/F (E)
Drop (H)
Cutoff - C
R543-0704
7/16-20
1/4
6.4
3/16
4.8
04
11.1
39.6
37.3
R543-0805
1/2-20
5/16
8
1/4
6.4
05
12.7
42.2
42.2
R543-1006
5/8-18
3/8
9.5
5/16
8
06
15.9
42.9
42.9
R543-1208
3/4-16
1/2
12.7
13/32
10.3
08
19
45.2
45.2

Product Data

R543-0704

SAE Male Thread (T)

7/16-20

Nominal Hose I.D - inches

1/4

Nominal Hose I.D - mm

6.4

True Hose I.D - inches

3/16

True Hose I.D - mm

4.8

Dash size

04

Hex A/F (E)

11.1

Drop (H)

39.6

Cutoff - C

37.3

R543-0805

SAE Male Thread (T)

1/2-20

Nominal Hose I.D - inches

5/16

Nominal Hose I.D - mm

8

True Hose I.D - inches

1/4

True Hose I.D - mm

6.4

Dash size

05

Hex A/F (E)

12.7

Drop (H)

42.2

Cutoff - C

42.2

R543-1006

SAE Male Thread (T)

5/8-18

Nominal Hose I.D - inches

3/8

Nominal Hose I.D - mm

9.5

True Hose I.D - inches

5/16

True Hose I.D - mm

8

Dash size

06

Hex A/F (E)

15.9

Drop (H)

42.9

Cutoff - C

42.9

R543-1208

SAE Male Thread (T)

3/4-16

Nominal Hose I.D - inches

1/2

Nominal Hose I.D - mm

12.7

True Hose I.D - inches

13/32

True Hose I.D - mm

10.3

Dash size

08

Hex A/F (E)

19

Drop (H)

45.2

Cutoff - C

45.2
